0.4-2kV免維護玻璃鋼絕緣低壓交直流母線槽

0.4-2kV maintenance-free FRP insulated low-voltage AC/DC bus duct

1．產品簡介  Product Introduction

免維護玻璃鋼絕緣低壓交直流母線槽是空氣絕緣母線槽、密集型母線槽和環氧樹脂澆注型母線槽的升級換代產品。該產品使用波紋形薄板作為導體，散熱性能好，導體利用率高。導體中間接頭、端部接線端子均采用焊接連接，減小了導體接觸電阻，可以免維護。導體外部覆蓋玻璃鋼扁管，在導體與玻璃鋼扁管之間填充導熱性好、耐高溫的石英砂顆粒，即提高了母線的防護等級，使其可以在浸水、直埋地下等特殊條件下運行，同時還增加了導體的散熱性能及母線槽的機械強度。免維護玻璃鋼絕緣低壓交直流母線槽可做為交流線槽亦可做為直流母線槽，即可水平布置又可豎直布置，是具有很高性價比的產品。

The maintenance-free FRP insulated low-voltage AC and DC busway is an upgraded product of air-insulated busway, dense busway and epoxy cast busway. The product uses corrugated sheet as the conductor, which has good heat dissipation performance and high conductor utilization rate. The middle joints and end terminals of the conductors are all welded to reduce the conductor contact resistance and can be maintenance-free. The conductor is covered with FRP flat pipe outside, and the quartz sand particles with good thermal conductivity and high temperature resistance are filled between the conductor and the FRP flat pipe, which improves the protection level of the busbar, so that it can operate under special conditions such as water immersion and direct burial underground, and also increases the heat dissipation performance of the conductor and the mechanical strength of the bus duct. The maintenance-free FRP insulated low-voltage AC/DC bus duct can be used as AC trunking or DC bus duct, which can be arranged horizontally and vertically, and is a very cost-effective product.

2．產品示意圖  Product schematic diagram

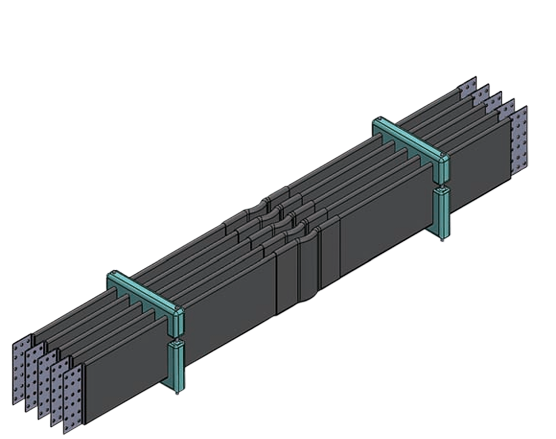

免維護玻璃鋼絕緣低壓交直流母線槽（交流三線五相）示意圖

Schematic diagram of maintenance-free FRP insulated low-voltage AC and DC bus duct (AC three-wire five-phase).

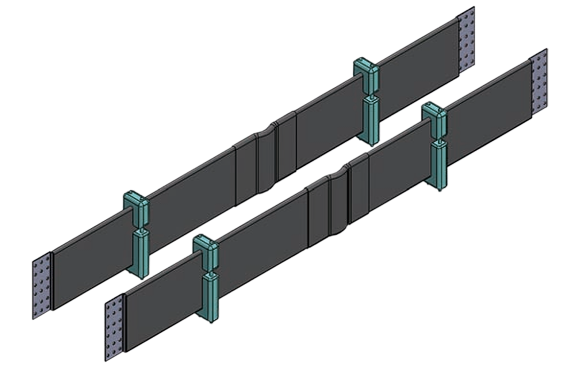

免維護玻璃鋼絕緣低壓交直流母線槽（直流）示意圖

Schematic diagram of maintenance-free FRP insulated low-voltage AC/DC busway (DC).

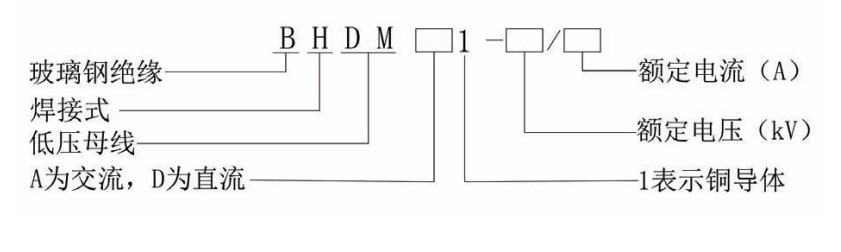

3.型號說明  Model description

4．產品優點  Benefits

免維護玻璃鋼絕緣低壓交直流母線槽以波紋形薄銅板代替銅排，集膚效應低，散熱面大，能夠提高導體電密，在相同載流量和相同溫升下，可提高導體利用率，減少母線用銅量，從而大幅度降低母線成本，具有成本低的優勢。

The maintenance-free FRP insulated low-voltage AC/DC bus duct replaces the copper bar with corrugated thin copper plate, which has low skin effect and large heat dissipation surface, which can improve the conductor electric density, and can improve the conductor utilization rate and reduce the amount of copper used in the bus under the same current carrying capacity and the same temperature rise, thereby greatly reducing the cost of the bus and having the advantage of low cost.

免維護玻璃鋼絕緣低壓交直流母線槽導體連接方式采用焊接方式替代螺栓機械連接方式，不僅減小了母線連接處的接觸電阻，同時還解決了螺栓連接易松動，需要定期停電緊固螺栓的問題，具有免維護質量的優勢。

The maintenance-free FRP insulated low-voltage AC/DC bus duct conductor connection method adopts welding method instead of bolt mechanical connection mode, which not only reduces the contact resistance of the bus connection, but also solves the problem that the bolt connection is easy to loosen and needs to be tightened by regular power failure, which has the advantage of maintenance-free quality.

免維護玻璃鋼絕緣低壓交直流母線槽外部使用玻璃鋼絕緣外殼，金屬外殼相比不但具有優秀的絕緣性能和機械性能，而且化學性能穩定、防水、耐腐蝕，密封后防護等級可以滿足IP68要求，可在浸水、直埋地下等條件下使用，具有使用范圍廣闊的優勢。

Maintenance-free FRP insulated low-voltage AC and DC bus duct outside the use of FRP insulated shell, metal shell not only has excellent insulation performance and mechanical properties, but also stable chemical properties, waterproof, corrosion resistance, sealed protection level can meet IP68 requirements, can be used in water, directly buried underground and other conditions, with a wide range of advantages of use.

5．產品結構  Product structure

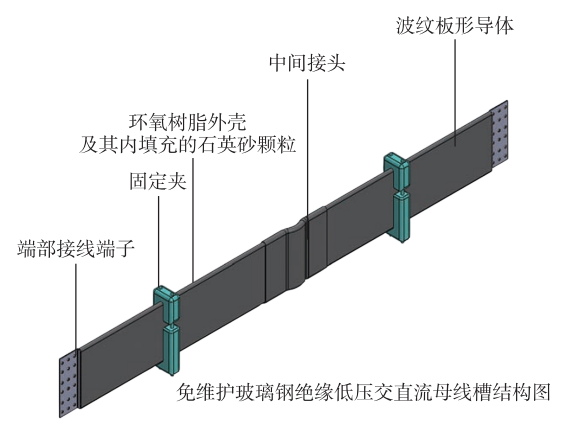

免維護玻璃鋼絕緣低壓交直流母線槽包括波紋板形導體、中間接頭、端部接線端子、玻璃鋼絕緣防護殼及石英砂填充顆粒、固定夾。如圖

The maintenance-free FRP insulated low-voltage AC/DC bus duct includes corrugated plate conductors, intermediate joints, end terminals, FRP insulated protective shells and quartz sand filled particles, and fixing clips. As shown in Fig

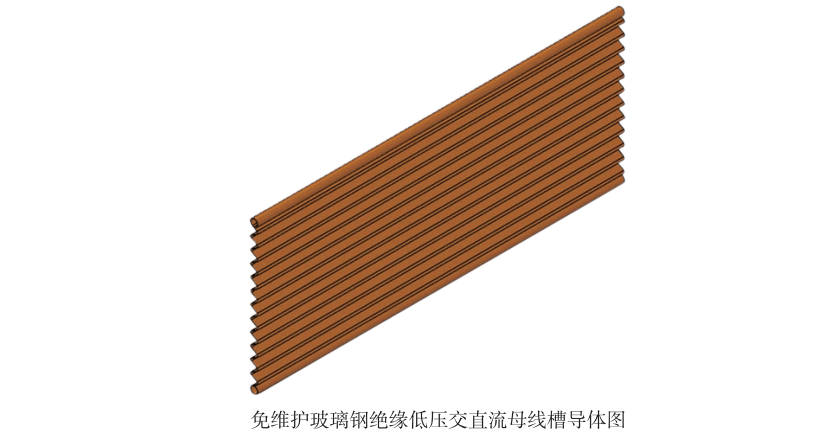

(1）免維護玻璃鋼絕緣低壓交直流母線槽導體

Maintenance-free FRP insulated low-voltage AC/DC bus duct conductor

波紋形薄銅板導體集膚效應低，散熱面大，能夠提高導體電密，在相同載流量和相同溫升下，可提高導體利用率，減少母線用銅量。

The corrugated thin copper plate conductor has low skin collection effect and large heat dissipation surface, which can improve the electrical density of the conductor, and under the same current carrying capacity and the same temperature rise,It can improve the utilization rate of conductors and reduce the amount of copper used in the busbar.

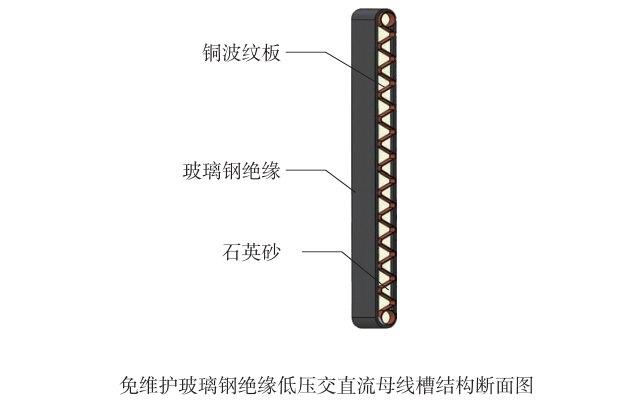

(2）免維護玻璃鋼絕緣低壓交直流母線槽絕緣外殼及內部填充

  Maintenance-free FRP insulated low-voltage AC/DC busway insulated shell and internal filling

玻璃鋼絕緣外殼一體成型，絕緣性能好、機械強度高、化學性質穩定、防水、耐腐蝕，且便于密封，整體防護等級高，可以達到IP68。

The FRP insulated shell is integrally formed, with good insulation performance, high mechanical strength, stable chemical properties, waterproof, corrosion resistance, and easy sealing, and the overall protection level is high, which can reach IP68.

導體和絕緣外殼之間填充的石英砂顆粒導熱性能好，耐高溫，選取合適絕緣外殼壁厚，可使母線槽滿足導體溫升≤70K，外殼溫升≤40K的國家標準。

The quartz sand particles filled between the conductor and the insulating shell have good thermal conductivity and high temperature resistance, and the wall thickness of the insulating shell can be selected to make the bus duct meet the national standard of conductive temperature rise of ≤ 70K and shell temperature rise of ≤40K.

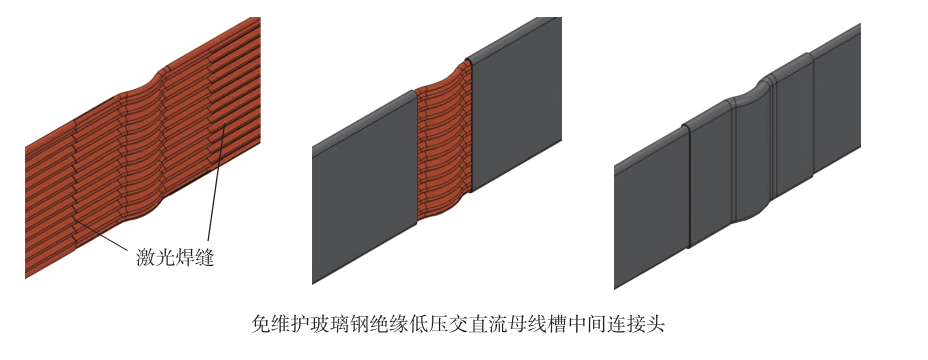

(3）免維護玻璃鋼絕緣低壓交直流母線槽中間連接頭

 Maintenance-free FRP insulated low-voltage AC and DC busway intermediate connectors

免維護玻璃鋼絕緣低壓交直流母線槽導體中間接頭采用焊接方式與母線導體連接，中間接頭具有伸縮功能，可以抵消導體因熱脹冷縮引起的內部應力和形變。其外部覆蓋絕緣護套，在保證絕緣性能、耐腐蝕、耐老化的基礎上同樣具備伸縮功能。如母線槽用于直埋地下、電纜溝、涵洞等環境，在護套外增設不銹鋼網以防止動物啃咬。

The maintenance-free FRP insulated low-voltage AC/DC bus duct conductor intermediate joint is connected with the bus conductor by welding, and the intermediate joint has a telescopic function, which can offset the internal stress and deformation of the conductor caused by thermal expansion and cold contraction. Its exterior is covered with an insulating sheath, which also has the function of expansion and contraction on the basis of ensuring insulation performance, corrosion resistance and aging resistance. For example, the busway is used for directly buried underground, cable trenches, culverts and other environments, and stainless steel mesh is added outside the sheath to prevent animals from biting.

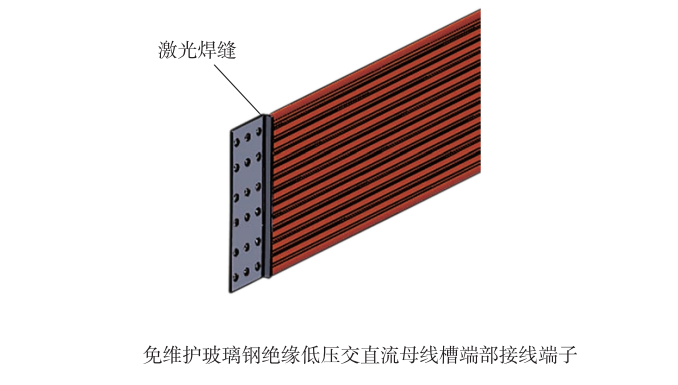

(4）免維護玻璃鋼絕緣低壓交直流母線槽端部接線端子

Maintenance-free FRP insulated low-voltage AC/DC bus duct end terminals

免維護玻璃鋼絕緣低壓交直流母線槽端子為平板狀，上有安裝孔，邊沿設置焊接面，波紋板形導體斷面與焊接面貼合焊接。

The maintenance-free FRP insulated low-voltage AC and DC bus duct terminals are flat-shaped, with mounting holes, welding surfaces are set on the edges, and corrugated plate-shaped conductor sections are welded with welding surfaces.

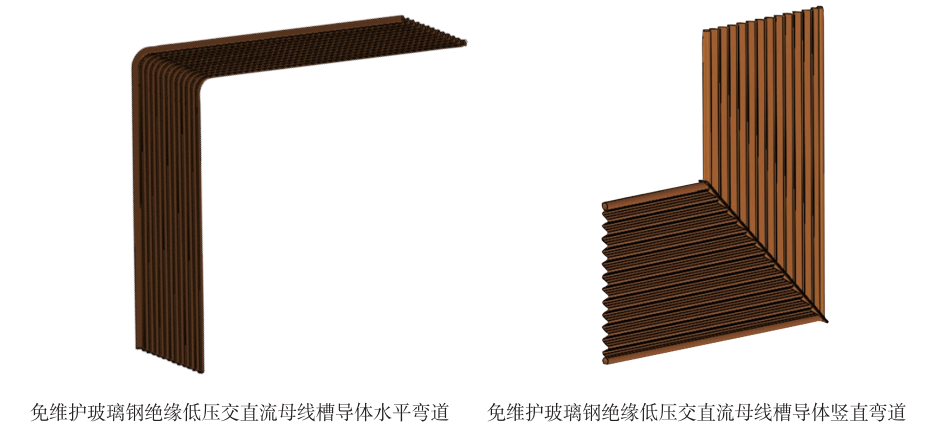

(5）免維護玻璃鋼絕緣低壓交直流母線槽導體彎道

Maintenance-free FRP insulated low-voltage AC/DC bus duct conductor bend

母線導體水平方向做彎通過專用模具配合折彎機實現，豎直方向上通過將兩段呈角度的波紋板形導體焊接連接的方式實現。

The horizontal bending of the bus conductor is realized by a special mold with a bending machine, and the vertical direction is achieved by the corrugated plate with two sections at an angle.The shape of the conductor is welded and connected.

6．產品用途   Product Use

免維護玻璃鋼絕緣低壓交直流母線槽適用于低壓供電系統中交流電流和直流電流的傳輸及分配，在10kV變電站用以替代電纜和其它形式低壓母線槽。產品分三相四線制和三相五線制，可水平布置，亦豎直布置，可在直埋地下、電纜溝、涵洞等多種復雜環境空間敷設。相比其它母線槽及電纜具有傳輸容量大，導體利用率高、用銅量少的優點，特別適用于能源、鋼鐵、石化、造紙、軌道交通、建筑等各行各業低壓配電系統和高層商住大樓、酒店、數據中心、醫院等的供電系統。

The maintenance-free FRP insulated low-voltage AC/DC bus duct is suitable for the transmission and distribution of AC current and DC current in low-voltage power supply system.It is used in 10kV substations to replace cables and other forms of low-voltage busway. The products are divided into three-phase four-wire system and three-phase five-wire system, which can be arranged horizontally or vertically, and can be laid in a variety of complex environmental spaces such as directly buried underground, cable trenches, culverts, etc. Compared with other bus ducts and cables, it has the advantages of large transmission capacity, high conductor utilization rate and low copper consumption, especially suitable for low-voltage power distribution systems in various industries such as energy, steel, petrochemical, papermaking, rail transit, and construction, as well as power supply systems for high-rise commercial and residential buildings, hotels, data centers, hospitals, etc.

7．使用要求  Requirements for use

地震烈度  earthquake intensity：≤8級

環境溫度  Ambient temperature：-50~50℃

相對濕度  relative humidity：日最高相對濕度  Daily maximum relative humidity≤95%，

月最高相對濕度  Maximum relative humidity per month  90%(25℃時）

8．性能參數  Performance parameters

額定電壓  Rated voltage：0.4~2kV

額定電流  Current rating：1250~12000A

額定短時耐受電流  Rated short-time withstand current：31.5kA,40kA,63kA,80kA

額定峰值耐受電流  Rated peak withstand current：80kA,100kA,160kA,200kA

絕緣電阻  Insulation resistance：>1000MΩ

耐熱等級  Heat resistance rating： B 級

工頻耐壓  Power frequency withstand voltage：3~12kV(1min/5min)

溫升限值  Temperature rise limits：≤70K

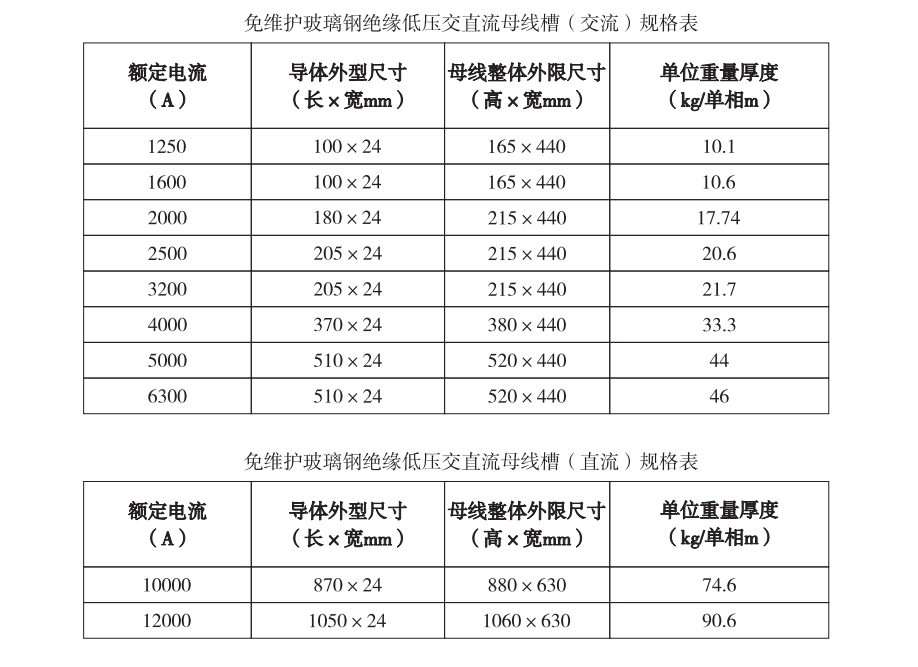

9．常用規格  Common specifications
